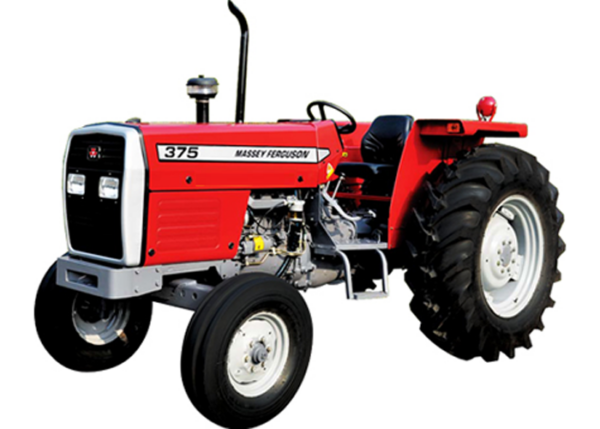

Massey Ferguson MF 375 Tractor

• Hydrostatic Power Steering for Comfortable Driving
• Hydraulically Actuated, Oil-Immersed Multi-Disc Brake System with Pendant Paddle
• Robust Straddle Rear Axle with Epicyclic Reduction Unit
• Heavy Duty Front Axle & Support
• Fuel Efficient, 4.248 High Performance Engine
• Greater Pulling Power
• Higher PTO Power
• Spring Suspension Delux Seat
• Easy Accessibility to Service Points
• Spacious Operator’s Area



Updated Technical Specifications for the Massey Ferguson 375 2WD Tractor.

Performance

Engine Power at 2,000 rpm> 75 (B.S) hp

Torque at 1,400 rpm 290 Nm

PTO Power at Rated 69.5 hp

Engine Speed

PTO Power at 540 rpm 63.0 hp

*Certified at BS AU 141a

Electrics

Voltage 12V, Negative Earth

Battery 110 Ah

Starter 2.8 kW

Alternator 45 Amp

Transmission

Type Sliding Spur

Number of Gears 8 Forward, 2 Reverse

Road Speed at 2,250 Engine RPM with 16.9/14×30 rear tyres

Gear Speed (km/hr)

Forward 1 (First Low) 2.3

Forward 2 3.4

Forward 3 4.7

Forward 4 6.3

Forward 5 (First High) 9.3

Forward 6 13.6

Forward 7 18.6

Forward 8 25.0

Reverse 1 (Low) 3.2

Reverse 2 (High) 12.7

Hydraulics

Functions Draft Control, Position Control Response Control, Constant Pumping

Pump Type Reciprocating, Ferguson Pump

Oil Flow 16.7 ltr/min

Pressure 21.2 Mpa at normal operating temperature

Lift Capacity with Lower 2,145 kg With Cat, I & II Interchangeable Balls

Links Horizontal

Rear Axle & Brakes

Axle Type Straddle with apicyclic redution unit

Brake Type Oil immersed, Multi-disc

Brake Pedal Pendant

Braking Area 1.774 sq. cm

Brake Actuation Hydraulic

Parking Brake Hand Lever Operated

Tyres

Front 7.50 – 16 (6PR)

Rear 16.9 / 14 – 30 (6PR)

Clutch

Type Dual

Diameter 305 x 254 mm

Lining Material Cerametallic

Front Axle

Type Heavy Duty Box Section, Adjustable

Steering

Type Hydrostatic

Track Adjustment

Front Axle 1,271 – 1,881 mm

Rear Axle 1,423 – 2,134 mm

Engine

Make / Type Diesel / 4.248

No. of Cylinders 4

Injection Direct

Bore 101 mm

Stroke 127 mm

Capacity (litres) 4.07 L

Compression Ratio 16:1

Compression Ratio 16.5:1

Aspiration Natural

Starting Aid Thermostart

Throttle Control Hand and Feet

Cooling Water

Air Cleaner Type Oil Bath

Air Pre-Cleaner Oil Bath

Fuel Filter Dual, High Capacity

Exhaust Vertical Muffler under Bonnet

Note: This is a premium heavy duty engine with tuffrided cranckshaft for longer life in adverse conditions.

Power Take Off

Type Live

Engine Speed at 540 pto rpm 1,789 rpm

Shaft Diameter 35mm

No. of Splines 6

Instrumentation

Guages Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature

Warning Lights Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, Brake Lights & Auxiliary Socket

Weight & Dimensions

Weight

Gross Weight 2,355 kg

Dimensions

Wheel Base 2,170 mm

Overall Length 3,670 mm

Overall Width (Min) 1,970 mm

Height

Over Exhaust 2,485 mm

Over Steering Wheel 1,730 mm

Turning Circle

With Brakes 7,260 mm

Without Brakes 8,095 mm

Ground Clearance

Under Gear Box 465 mm

Capacities

Fuel Tank 108.0L

Engine Pump 7.5L

Cooling System 15.2L

Hydraulic System 36.0L

Hydrostatic Steering Reservior 2.0L

Oil Bath Air-Cleaner 0.7L

Brake Oil 0.25L

Standard Equipment

Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Spring Suspension Seat, Flat Top Fender & Operator’s Manual

Optional Equipment

Front End Weights, Swinging Draw Bar, Sun Canopy, Pintle Hook
